Actual Product May Vary From Image

3226PT3 LBB

Name: 3226PT3 LBB
Brand: Rexnord
SKU: 3226PT3 LBB
Availability: OutOfStock

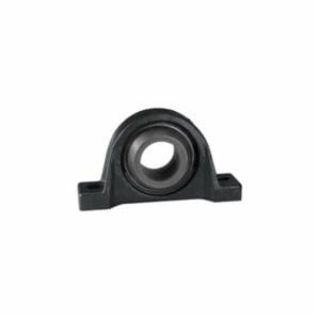

Link-Belt® 3226PT3 3200P 1-Piece Standard-Duty Pillow Block Sleeve Bearing Unit, 1-5/8 in Dia Bore, 5-5/8 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7-1/4 in OAL x 4-5/16 in OAH

Manufacturer: Rexnord

Manufacturer part number: 3226PT3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

1-Piece Standard-Duty

Description

Flex-Block® sleeve bearings are alignable and self-lubricating. Because the bearing material wears gradually under operation, sudden breakdowns and costly maintenance are minimized. The standard bearing insert materials of oil impregnated porous sintered bronze or self-lubricating graphite are widely used for the extreme applications of modern industry.

Link-Belt® Pillow Block Sleeve Bearing Unit, 1-Piece Standard-Duty, Series: 3200P, 1-5/8 in Bore, 5-5/8 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-1/4 in Overall Length, 2-1/8 in Overall Width, 4-5/16 in Overall Height, Two-Bolt Base Mounting, 2 in Base Width, Unsealed Seal, Non-Expansion (Fixed) Expansion, 81 lb Load, 700 deg F, 1000 rpm Maximum, Cast Iron, Powder Coated

Application

Commercial Furnaces, Heat Treatment, Wastewater Management, Dams and Air Handling Industries

Features

Sturdy 1-piece housings with machined mounting surfaces
Component has machined spherical surface for proper seating in housing and for initial mounting alignment
Extend unit life
Self-lubricating sleeve bearing
Carbon graphite self-lubricating

Specifications

Base to Bore Centerline:	2-1/8 in
Base Width:	2 in
Bolt Center-to-Center Length:	5-5/8 in
Bore Diameter:	1-5/8 in
Country of Origin:	MX
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	81 lb
Material:	Cast Iron
Maximum Speed:	1000 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	4-5/16 in
Overall Length:	7-1/4 in
Overall Width:	2-1/8 in
Seal Type:	Unsealed
Series:	3200P
Temperature Rating:	700 deg F
