324L 40/1 A WR 143TC HUB

Name: 324L 40/1 A WR 143TC HUB
Brand: Hub City
SKU: 324L 40/1 A WR 143TC HUB
Availability: OutOfStock

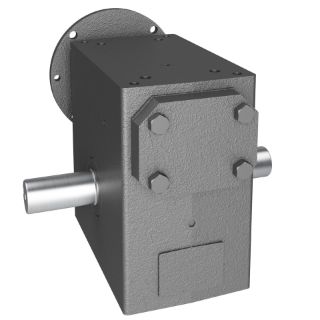

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-15820

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 320LPCX, 40:1 Gear Ratio, 2.75 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1-3/8 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3176 in-lb Output Torque, 3-1/4 in Centre Distance, 5/16 x 5/32 in Output Keyway, 79 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 10.88 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-1/4 in
Dimensions:	10.88 in W
Efficiency:	79 %
Gear Ratio:	40:1
Horsepower:	2.75 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	5/16 x 5/32 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	1-3/8 in Dia
Output Type:	Shaft
Series:	320LPCX
Torque Rating:	3176 in-lb Output
