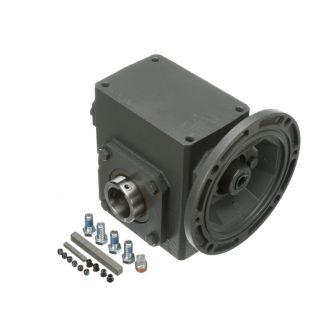

Picture of 325Q56H30 103 MOR
Actual Product May Vary From Image

325Q56H30 103 MOR

Morse® Raider® Plus XI1303 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Hollow Output, 1 hp, 30:1 Gear Ratio, 58.3 rpm Maximum Output, 130.34 in-lb Input/58.3 in-lb Output Torque Rating
Manufacturer: Regal Rexnord
Manufacturer part number: XI1303
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Morse®

Type

Single Reduction Standard

Description

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 30:1 Gear Ratio, 1 hp, C-Face Quilled Input, Hollow Output, 0.63 in Dia Input, 1.188 in Dia x 3.66 in L Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 130.34 in-lb Input/58.3 in-lb Output, 3-1/4 in Centre Distance, 0.1875 x 1.63 in Input Keyway, Polyglycol Oil Lubrication, Cast Iron, 11.16 in L x 10.7 in W

Application

Food Industry, Lumber Industry, Paper Mills, Rubber Industry and Textile Industries

Standards

FDA Approved

Features

  • Rugged cast iron housing provides maximum strength and dependability
  • High lead angle worm is case hardened, ground and polished
  • Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
  • Tapered roller bearings are used on output shaft
  • Forged bronze worm gears provide optimum balance of strength and wear
  • Modular worm gear design provides over 10 million configurations from stock components
  • Double sealing capability on input and output shafts
  • Dimensionally interchangeable with major industry competitors
  • 1-3/16 in bore hollow output
  • 56 NEMA frame

Specifications

Centre Distance:3-1/4 in
Dimensions:11.16 in L x 10.7 in W
Gear Ratio:30:1
Horsepower:1 hp
Input Maximum Speed:1750 rpm
Input Size:0.63 in Dia
Input Type:C-Face Quilled
Keyway Size:0.1875 x 1.63 in Input
Lubrication Type:Polyglycol Oil
Material:Cast Iron
Output Maximum Speed:58.3 rpm
Output Size:1.188 in Dia x 3.66 in L
Output Type:Hollow
Torque Rating:130.34 in-lb Input/58.3 in-lb Output
