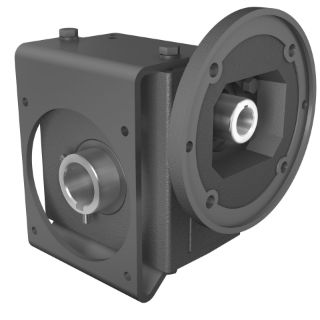

326L 20/1 L WR 182TC 1.438 HUB

Name: 326L 20/1 L WR 182TC 1.438 HUB
Brand: Hub City
SKU: 326L 20/1 L WR 182TC 1.438 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-16237

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 320LPCX, 20:1 Gear Ratio, 4.59 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1.438 in Dia Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2935 in-lb Output Torque, 3-1/4 in Centre Distance, 83.7 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 7.78 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-1/4 in
Dimensions:	7.78 in W
Efficiency:	83.7 %
Gear Ratio:	20:1
Horsepower:	4.59 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	87.5 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	320LPCX
Torque Rating:	2935 in-lb Output
