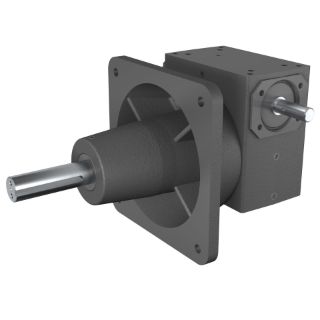

Actual Product May Vary From Image

327 100/1 L WR STD FLANGE HUB

Name: 327 100/1 L WR STD FLANGE HUB
SKU: 327 100/1 L WR STD FLANGE HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-15512 320PCX Right Angle Single Reduction Style L Worm Gear Reducer With Drop Bearing Mounting Flange, Shaft Input, Shaft Output, 0.8 hp Input, 100:1 Gear, 17.5 rpm Maximum Output, 1740 in-lb Output Torque Rating

Manufacturer part number: 0230-15512

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 320PCX, 100:1 Gear Ratio, 0.8 hp Input, Shaft Input, Shaft Output, 0.875 in Dia x 2.38 in L Input, 1.438 in Dia x 4.68 in L Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1740 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 60.2 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Efficiency:	60.2 %
Gear Ratio:	100:1
Horsepower:	0.8 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	1.438 in Dia x 4.68 in L
Output Type:	Shaft
Series:	320PCX
Torque Rating:	1740 in-lb Output
