33-771 IDE

Name: 33-771 IDE
Brand: Ideal Industries
SKU: 33-771 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

33-771

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

IDEAL®

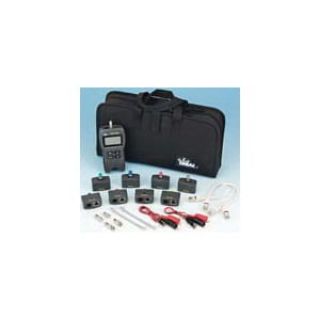

IDEAL® VDV™ PRO Cable Tester, LCD Display

For voice, data and video applications, supports RJ-11/12, RJ-45, coax F, BNC and RCA connectors

Integrated RJ11/12 (voice), RJ45 (data) and coax F-connector (video) interfaces reducing the time needed when transitioning between applications and eliminating the need for replacing lost adaptors
Integrated tone generator with 4 unique analogue tones for onstant locating and isolation of wire pairs in voice, data and video testing
Detachable remote with RJ11/12, RJ45 and coax F-connector interfaces that stores securely in the base of the main unit making it easily available and ready for fast testing
Tests 3-pair USOC and 6-position RJ-11/12 jacks for voice cable testing
Will detect RJ-11 (1, 2 or 3-pair)
Shows normal or reverse for pins 1 through 6
Tests shielded or unshielded twisted pair cable to T568A/B (RJ45) standards
Shows pass or miswire to indicate reversals, shorts, splits, breaks and opens
Measures length of UTP, STP and coax cable and displays the distance to a specific fault in wiremap format
Displays wiremap for 10BaseT and Token ring when connected to its remote
Blinks network link LED for visual tracing
Tests coax cable for opens, shorts and length with F-connector interface
Coax mapping with up to eight color coded coax remotes
RCA and BNC adaptors used in cable, satellite and video surveillance systems

9 VDC Battery, (8) Remotes, Carrying Case and Terminators

Display Type:

LCD
