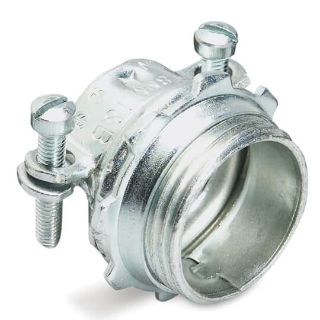

Actual Product May Vary From Image

3303-TB TB

Name: 3303-TB TB
Brand: Thomas & Betts
SKU: 3303-TB TB
Availability: OutOfStock

CONNECTOR, TWO SCREW

Manufacturer: Thomas & Betts

Manufacturer part number: 3303-TB

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

T&B

Type

Non-Metallic Sheathed Cable Conduit Fittings

Description

3/4 in. Two Screw Connector, Steel-Electro Zinc Plated.

Application

To connect non-metallic sheathed cable and flexible cord to a box or an enclosure.

Standards

E 17583

Features

Rounded cable grip and smooth bushing protect the cable sheath and wire insulation. Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable. An extra lip on the saddle closes the unused part of the connector opening.

Note

U.L. listed and CSA certified for the following single (1) and pairs of (2) NM and NMC cable; (1) 2#8, 2#6, 3#8, 3#6, 3#4(2) 2#12, 2#10, 2#8, 3#14.

Specifications

Cable Opening Maximum:	0.750 IN
Cable Opening Minimum:	0.530 IN
Country of Origin:	US
Finish:	Electro Zinc Plated
Knockout Size:	3/4 IN
Material:	Steel

Resources

Spec Sheet
