Actual Product May Vary From Image

3304 TB

Name: 3304 TB
Brand: Thomas & Betts
SKU: 3304 TB
Price: 10.80 USD
Availability: OutOfStock

1 TWO-SCREW CONNECTOR

Manufacturer: Thomas & Betts

Manufacturer part number: 3304

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.80

Qty:

Product Details

Brand Name

T&B

Type

Non-Metallic Sheathed Cable Conduit Fittings

Description

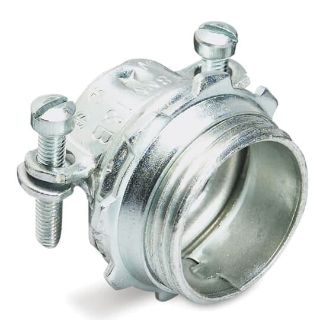

1 in. Two Screw Connector, Steel-Electro Zinc Plated.

Application

To connect non-metallic sheathed cable and flexible cord to a box or an enclosure.

Standards

E 17583

Features

Rounded cable grip and smooth bushing protect the cable sheath and wire insulation. Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable. An extra lip on the saddle closes the unused part of the connector opening.

Note

U.L. listed and CSA certified for the following single (1) and pairs of (2) NM and NMC cable; (1) 3#8, 3#6, 3#4(2) 2#8, 3#10.

Specifications

Cable Opening Maximum:	0.990 IN
Cable Opening Minimum:	0.690 IN
Country of Origin:	US
Finish:	Electro Zinc Plated
Knockout Size:	1 IN
Material:	Steel

Resources

Spec Sheet
