3305-BD-XL-2Z FAG

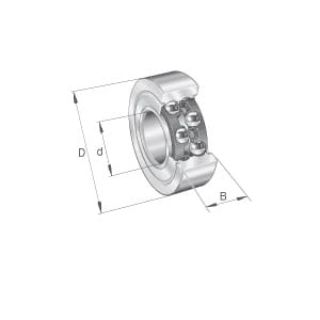

Picture of 3305-BD-XL-2Z FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
3305-BD-XL-2Z
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$122.42 / EA

Description

Brand Name

FAG

Description

FAG Angular Contact Ball Bearing, Series: 33..-BD-2Z, 25 mm Bore, 62 mm OD, 2 Rows, 25.4 mm Width, 30 deg Contact Angle, Double Shield Closure, 31500 N Dynamic/21000 N Static/1410 N Fatigue Load, Steel Seal, Steel Cage, 9400 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 628-3

Features

  • Modified internal construction
  • Gap seal on both sides

Specifications

Bore Diameter:25 mm
Cage Material:Steel
Closure Type:Double Shield
Contact Angle:30 deg
Load Capacity:31500 N Dynamic/21000 N Static/1410 N Fatigue
Maximum Speed:9400 rpm
Number of Rows:2
Outside Diameter:62 mm
Seal Material:Steel
Series:33..-BD-2Z
Temperature Rating:-30 to 120 deg C
Width:25.4 mm

Products Specifications

Bore Size
25 mm
Brand Name
FAG
