3306-BD-XL-2Z-TVH FAG

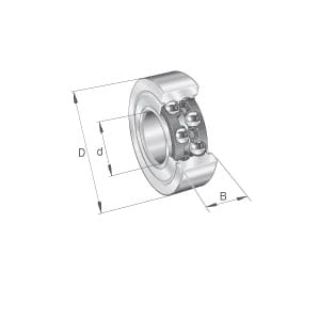

Picture of 3306-BD-XL-2Z-TVH FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
3306-BD-XL-2Z-TVH
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$144.89 / EA

Description

Brand Name

FAG

Description

FAG Angular Contact Ball Bearing, Series: 33..-BD-2Z, 30 mm Bore, 72 mm OD, 2 Rows, 30.2 mm Width, 30 deg Contact Angle, Double Shield Closure, 43000 N Dynamic/29500 N Static/1990 N Fatigue Load, Steel Seal, Polyamide Cage, 8500 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 628-3

Features

  • Modified internal construction
  • Gap seal on both sides

Specifications

Bore Diameter:30 mm
Cage Material:Polyamide
Closure Type:Double Shield
Contact Angle:30 deg
Load Capacity:43000 N Dynamic/29500 N Static/1990 N Fatigue
Maximum Speed:8500 rpm
Number of Rows:2
Outside Diameter:72 mm
Seal Material:Steel
Series:33..-BD-2Z
Temperature Rating:-30 to 120 deg C
Width:30.2 mm

Products Specifications

Bore Size
30 mm
Brand Name
FAG
