3307-BD-XL-2Z-C3 FAG

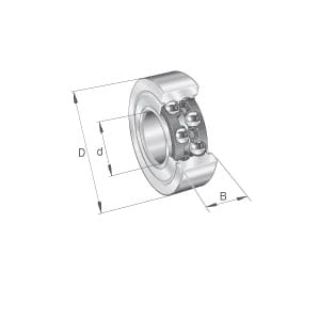

Picture of 3307-BD-XL-2Z-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
3307-BD-XL-2Z-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$145.76 / EA

Description

Brand Name

FAG

Description

FAG Angular Contact Ball Bearing, Series: 33..-BD-2Z, 35 mm Bore, 80 mm OD, 2 Rows, 34.9 mm Width, 30 deg Contact Angle, Double Shield Closure, 55000 N Dynamic/36500 N Static/2460 N Fatigue Load, Steel Seal, Steel Cage, 8100 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 628-3

Features

  • Modified internal construction
  • Gap seal on both sides
  • C3 axial internal clearance

Specifications

Bore Diameter:35 mm
Cage Material:Steel
Closure Type:Double Shield
Contact Angle:30 deg
Load Capacity:55000 N Dynamic/36500 N Static/2460 N Fatigue
Maximum Speed:8100 rpm
Number of Rows:2
Outside Diameter:80 mm
Seal Material:Steel
Series:33..-BD-2Z
Temperature Rating:-30 to 120 deg C
Width:34.9 mm

Products Specifications

Bore Size
35 mm
Brand Name
FAG
