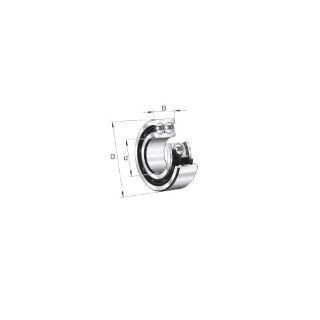

3307-BD-XL-C3 FAG

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide or sheet steel cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent. The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings are maintenance-free and therefore allow particularly economical bearing arrangements.

FAG Angular Contact Ball Bearing, Series: 33..-BD, 35 mm Bore Dia, 80 mm Outside Dia, 2 Rows, 34.9 mm W, 30 deg Contact, Open Closure, 55000 N Dynamic/36500 N Static/2460 N Fatigue, Steel Cage, 9000 rpm Maximum, -30 to 120 deg C
