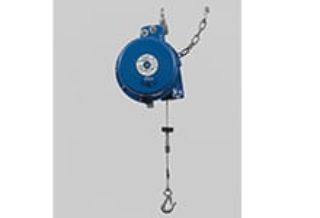

Aero-Motive® 330LAS 130172 Heavy Industrial Duty Zero Gravity Balancer, 300 to 331 lb Load, 5 ft L Cable, 5 ft Travel
Manufacturer: Molex/Woodhead
Manufacturer part number: 330LAS
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Aero-Motive®

Type

Heavy Industrial Duty Zero Gravity

Description

It's a simple fact. Make a job easier to do, and you can do it better, faster, longer. Balancers and tool support systems by Woodhead® improve the productivity of light assembly, packaging, and many other shop floor workers by keeping their tools out of the way when not needed. With balancers, workstations can be organized more efficiently by ensuring that tools are always in the right place. Expensive power tools suspended from balancers are safeguarded from being accidentally dropped onto the floor or onto other expensive products or equipment.
Aero-Motive® Balancer, Heavy Industrial Duty Zero Gravity, Series: 130172/LAS, 300 to 331 lb, 5 ft Cable Length, 5 ft Travel, Stranded Galvanized Steel Cable, Cast Aluminum Housing, Automatic Safety/Manual Locking, Hanging Mount

Features

  • Premature failure is prevented by a Wear-Guard® coating on the drum and a 4-roller guide, which protect the cable and drum from excessive wear
  • Quick, easy tool changes with manual drum lock
  • Automatic lock secures load if tension drops
  • Caged mainspring for safe, easy spring handling
  • Easy external adjustment with no special tools
  • Full range of motion with 360 deg swivel hanger
  • Declutching hub prevents spring damage, even if spring is reverse wound
  • Cast aluminum construction for long life
  • High tensile strength
  • 3/16 in Dia cable

Specifications

Cable Length:5 ft
Cable Material:Stranded Galvanized Steel
Country of Origin:MX
Housing Material:Cast Aluminum
Load Capacity:300 to 331 lb
Locking Type:Automatic Safety/Manual
Mounting Type:Hanging
Series:130172/LAS
Travel:5 ft
