Actual Product May Vary From Image

330P6W LEV

Name: 330P6W LEV
Brand: Leviton Manufacturing
SKU: 330P6W LEV
Availability: OutOfStock

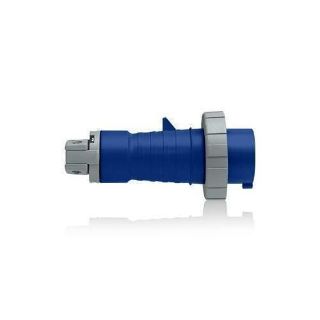

Leviton® 330P6W Watertight Pin and Sleeve Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Blue

Manufacturer: Leviton Manufacturing

Manufacturer part number: 330P6W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Watertight

Alternate Supplier #

Grainger - 25NC30

Description

Leviton® Pin and Sleeve Plug, Watertight, 250 VAC, 30 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 3.7 in Dia x 6.85 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1 | IEC 60309-1/60309-2 | UL 1682/1686 | UL 94 V-2 Flammability Rated

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:	30 A
Color:	Blue
Country of Origin:	CZ
Dimensions:	3.7 in Dia x 6.85 in L
Enclosure:	IP67/IP69K
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
