330P7W LEV

Leviton® pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device, devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve ON the female device and the number of conductors. This location is based on a clock face with the key way at the 6 oclock position. The ground sleeve is positioned at a specific hour location, depending ON the devices voltage rating.

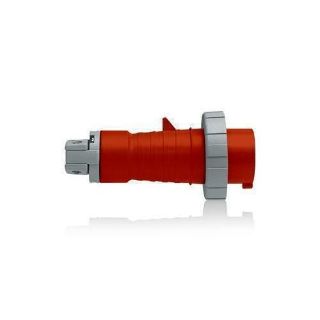

Leviton® 330P7W Pin And Sleeve Plug, Watertight, 480 VAC, 30 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Red, 3.7 in Dia x 6.85 in L Dimensions
