Home / 330R4W LEV

330R4W LEV

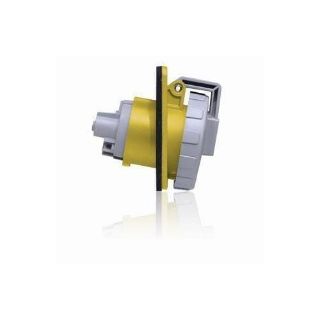

Picture of 330R4W LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
330R4W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Watertight

Description

Leviton® Pin and Sleeve Receptacle, Watertight, 125 VAC, 30 A, 50/60 Hz, 2 Poles, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Yellow, 4.1 in H x 4.6 in D

Standards

CE 73/23/EEC | 93/68/EEC Marked | CSA C22.2 No. 182.1 Certified | IEC 60309-1 | 60309-2 Rated | UL 1682 | 1686 Listed | UL94 V-2 Flammability Rating

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:30 A
Color:Yellow
Country of Origin:CZ
Dimensions:4.1 in H x 4.6 in D
Enclosure:IP67
Frequency Rating:50/60 Hz
Grade:Industrial
Material:Valox® 357
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
