3315U78 RND

Name: 3315U78 RND
Brand: Rexnord
SKU: 3315U78 RND
Availability: OutOfStock

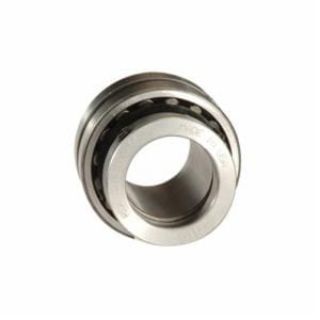

Rex® Twist Lock™ 3315U78 3000 Medium Duty Unmounted Spherical Roller Insert Bearing, 3-15/16 in Dia Bore, 7.0861 in OD, 2-3/4 in W, 130970 lb Dynamic/137000 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 3315U78

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rex®

Type

Medium Duty Unmounted

Description

Rex® Twist Lock™ Spherical Roller Insert Bearing, Medium Duty Unmounted, Series: 3000, 3-15/16 in Bore Dia, 7.0861 in Outside Dia, 2-3/4 in Width, 130970 lb Dynamic/137000 lb Static Load, 52100 Steel Bearing, 225 deg F, Uncoated

Features

Eccentric cam locking collar
Steel retainers
Precision ground and super finished raceways
Self-aligning
Easy bearing clearance adjustment
Replaceable bearing
Shaft ready
Super-finished raceways
Rugged housing
Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	3-15/16 in
Country of Origin:	US
Finish:	Uncoated
Load Capacity:	130970 lb Dynamic/137000 lb Static
Outside Diameter:	7.0861 in
Series:	3000
Temperature Rating:	225 deg F
Width:	2-3/4 in
