.3318ES1RADB56N WEG

Name: .3318ES1RADB56N WEG
Brand: WEG
SKU: .3318ES1RADB56N WEG
Availability: OutOfStock

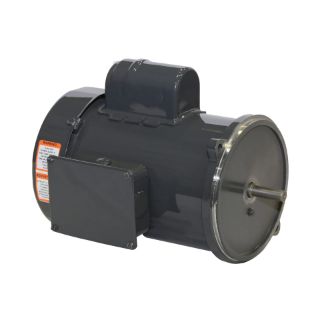

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

.3318ES1RADB56N

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101386564
Motion Industries - 04205668

Description

WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators.

WEG AC Motor, Continuous-Duty, Auger Drive Motors, Farm Duty Motors Application, 0.33 hp, 115/230 VAC, 5.6/2.8 A, 60 Hz Frequency, 1 ph ph, 1750 rpm Speed, Totally Enclosed Fan Cooled Enclosure, B56N Frame, 0.625 in Dia x 1.88 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 0.977 ft-lb Torque, Footless Mounting, -20 to 40 deg C, Insulation Class: Class B, Rolled Steel, 12.76 in L Dimensions

Standards

NEMA MG-1

Features

Double shielded ball bearings
Two bolts mounting NEMA 'N' flange
Extended shaft (NDE) with wrench flat for manual jogging of auger
Centrifugal start switch protected against auger drive overspeed
Manual reset thermal overload protection

Specifications

Amperage Rating:	5.6/2.8 A
Application Type:	Auger Drive Motors, Farm Duty Motors
Bearing Type:	Ball
Dimensions:	12.76 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	B56N
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Footless
Phase:	1
Rotation:	CW/CCW
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 1.88 in L
Speed:	1750 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	0.977 ft-lb
Voltage Rating:	115/230 VAC
