33216-90NA3 TKN

Name: 33216-90NA3 TKN
Brand: Timken
SKU: 33216-90NA3 TKN
Availability: OutOfStock

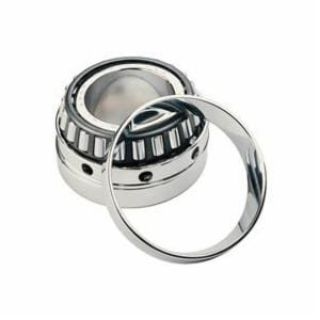

Timken® 33216-90NA3 Type TS Tapered Roller Bearing Assembly, 80 mm Dia Bore, 140 mm OD, 1 Row, 46 mm W, 297000 N Dynamic/409000 N Static Load

Manufacturer: Timken

Manufacturer part number: 33216-90NA3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TS

Description

Timken® Tapered Roller Bearing Assembly, Type TS, Series: 33216, 80 mm Bore Dia, 140 mm Outside Dia, 1 Rows, 46 mm Width, 297000 N Dynamic/409000 N Static, Stamped Steel Cage, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles and Trailer Wheels

Features

Single cone and cup
One-piece pressed steel cage retains rollers on the cone and spaces them evenly

Specifications

Bore Diameter:	80 mm
Cage Material:	Stamped Steel
Load Capacity:	297000 N Dynamic/409000 N Static
Number of Rows:	1
Outside Diameter:	140 mm
Series:	33216
Temperature Rating:	-65 to 250 deg F
Width:	46 mm
