3403 RAC

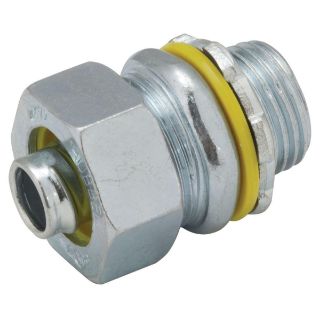

Picture of 3403 RAC
Actual Product May Vary From Image

Product Details

Manufacturer:
Raco Industries
Manufacturer part number:
3403
product.name:
3403 RAC
CBT Inventory
135
Vendor Inventory
Loading...
CBT - Cincinnati
135
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
$10.87 / EA

Description

Brand Name

RACO®

Type

Non-Insulated Straight

Alternate Supplier #

Grainger - 6X771
Fastenal - 0722558

Description

RACO®, 3403, Conduit Connector, Non-Insulated Straight, 3/4 in Trade, 0.8 in Dia Throat, For Use With: Liquid Tight Flexible Metallic and Type B Non-Metallic Conduit/Cord, Malleable Iron/Steel, Silver, Electro-Plated Zinc, 1-7/8 in L x 1-5/8 in W Dimensions

Application

Used in outdoor or indoor locations and positively bond the conduit to a box or enclosure and hazardous locations

Standards

CSA Certified | UL ListeD, Class 1, Div 2, Class 2, Div 1, 2, Class 3, Div 1, 2 | UL 514B | UL File No. E195969 | CSA C22.2 No. 18

Features

  • Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
  • All components are reusable RACO® liquidtight connectors may be easily disassembled and reused after years of service
  • Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening
  • Heavy-duty locknut with every RACO® liquidtight connector assures continuity of ground
  • 3/8 to 1 in steel bodies, 1-1/4to 4 in malleable iron bodies, 3/8 to 1 in steel nuts, 1-1/4 to 4 in malleable iron nuts
  • 3/4 in to 14 NPT thread specification
  • 9/16 in L thread
  • Electro-plated zinc for added corrosion protection

Includes

Sealing Washer and Locknut

Specifications

Color:Silver
Country of Origin:CN
Dimensions:1-7/8 in L x 1-5/8 in W
Finish:Electro-Plated Zinc
Material:Malleable Iron/Steel
Suitable For Use With:Liquid Tight Flexible Metallic and Type B Non-Metallic Conduit/Cord
Throat Size:0.8 in Dia
Trade Size:3/4 in

Products Specifications

Brand Name
Hubbell
Conduit Type
LFMC, LFNC Type B
Material
Steel
Size
3/4 in
Type
Liquidtight Connector
