34H100SK BRN

Name: 34H100SK BRN
Brand: Regal Rexnord
SKU: 34H100SK BRN
Price: 301.12 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3513694

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$301.12 / EA

Description

Brand Name

Browning®

Type

Type BF Solid

Description

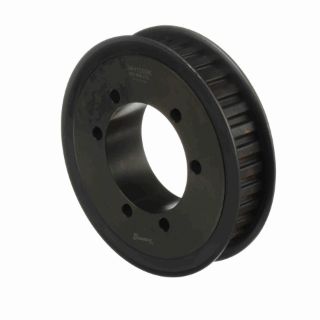

Browning® Gearbelt® Synchronous Flanged Pulley, Type BF Solid, QD® Bore, 1/2 to 2-5/8 in Bore, 5.357 in OD, 5.411 in Pitch Diameter, 34 Grooves, 1/2 in Pitch, 1-5/16 in Face Width, 5-5/8 in Diameter Flange, SK Bushing, For Use With: 1 in W Type H100 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore

Specifications

Bore Diameter:	1/2 to 2-5/8 in
Bore Type:	QD®
Bushing Type:	SK
Country of Origin:	US
Face Width:	1-5/16 in
Flange Diameter:	5-5/8 in
Number of Grooves:	34
Outside Diameter:	5.357 in
Pitch:	1/2 in
Pitch Diameter:	5.411 in
Suitable For Use With:	1 in W Type H100 Belt
