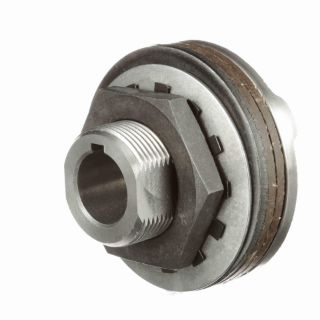

350A-1 TL 1 FB MOR

The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.

Morse® Torque Limiter, Series: TL Series, Straight Bore, 1 in Bore Dia, 3-1/2 in Outside Dia, 2-7/16 in Overall Length, 15 to 55 in-lb, 1000 rpm Maximum, 35 Stock/33 MTO (NO. 35 Chain), 26 Stock/MTO (NO. 40 Chain), 26 Stock/MTO (NO. 41 Chain), 21 Stock/MTO (NO. 50 Chain), 18 Stock/MTO (NO. 60 Chain), 15 Stock/MTO (NO. 80 Chain) Minimum Sprocket Teeth
