3525 1.3/16DUC-NK GAT

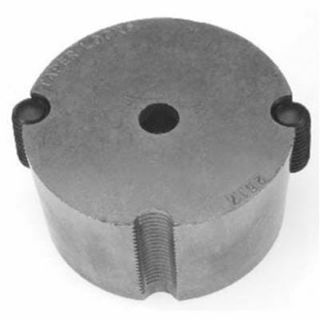

Picture of 3525 1.3/16DUC-NK GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
3525 1.3/16DUC-NK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$899.51 / EA

Description

Brand Name

Gates®

Type

Reborable

Description

Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Gates® Taper Lock Bushing, Reborable, 1-3/16 in Bore Dia, 5 in Barrel Dia, 7 in Hub Dia, 8 deg Taper, 4.83 in Bolt Circle, 3 Bolt Holes, 1/2-13 x 1-1/2 in Screw, 44800 in-lb, For Use With: Taper Lock Style Sheaves, Sprockets and Pulleys, 2-1/2 in Overall Length, Ductile Iron

Features

  • Size 3525 bushing
  • Bushings are made to precise tolerances

Specifications

Barrel Diameter:5 in
Bolt Circle Diameter:4.83 in
Bore Diameter:1-3/16 in
Country of Origin:US
Hub Diameter:7 in
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:2-1/2 in
Screw Size:1/2-13 x 1-1/2 in
Suitable For Use With:Taper Lock Style Sheaves, Sprockets and Pulleys
Taper:8 deg
Torque Rating:44800 in-lb
