3535X5/8 BRN

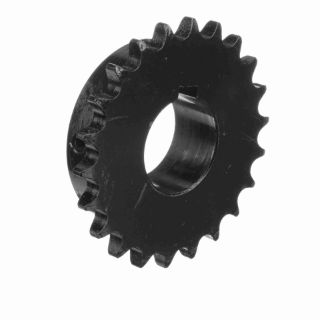

Picture of 3535X5/8 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
3924040
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Browning®

Type

Single Strand Finished Bore Type 1

Description

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 5/8 in Bore Dia, 4.392 in Outside Dia, #35 Chain, 35 Teeth, 3/8 in Pitch, 4.183 in, 2.516 in Hub Dia, 3/16 x 3/32 in Keyway, 0.859 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Browning offers one of the largest selection of application shaft ready sprockets in the industry

Specifications

Bore Diameter:5/8 in
Chain Size:#35
Country of Origin:US
Hub Diameter:2.516 in
Keyway Size:3/16 x 3/32 in
Length Through Bore:0.859 in
Material:Steel
Number of Teeth:35
Outside Diameter:4.392 in
Pitch:3/8 in
Pitch Diameter:4.183 in
