Actual Product May Vary From Image

353DC 2 TKN

Name: 353DC 2 TKN
Brand: Timken
SKU: 353DC 2 TKN
Availability: OutOfStock

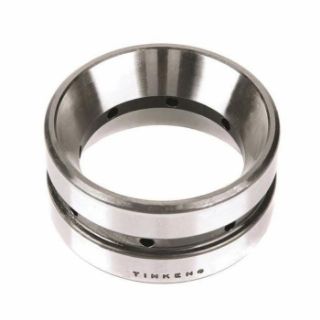

Timken® 353DC-2 355 Double Tapered Bearing Cup, 3.548 in OD, 1-3/4 in W Cup, 1.9998 in W Bearing, 0.03 in Max House Fillet Radius, 3.27 in Frontface Dia Max House Shoulder

Manufacturer: Timken

Manufacturer part number: 353DC-2

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Double Tapered

Description

Timken® Bearing Cup, Double Tapered, Series: 355, 3.548 in OD, 1-3/4 in Cup Width, 1.9998 in Bearing Width, 0.03 in Maximum House Fillet Radius, 3.27 in Frontface Diameter Maximum House Shoulder, For Use With: Type TDO Tapered Roller Bearings, Steel

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA Certified

Features

When spacers are used, bearing is furnished as a preset, matched assembly
Cup features groove and lubrication holes in the outside diameter

Specifications

Bearing Width:	1.9998 in
Cup Width:	1-3/4 in
Material:	Steel
Maximum House Fillet Radius:	0.03 in
Maximum House Shoulder Diameter:	3.27 in Frontface
Outside Diameter:	3.548 in
Series:	355
Suitable For Use With:	Type TDO Tapered Roller Bearings
