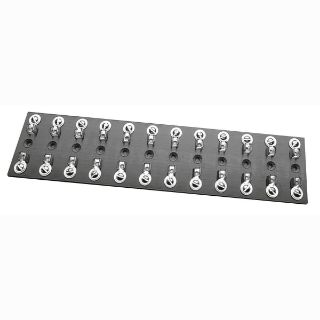

Actual Product May Vary From Image

356002 LIT

Name: 356002 LIT
Brand: Littelfuse
SKU: 356002 LIT
Price: 32.18 USD
Availability: OutOfStock

Littelfuse® 356002 Cartridge Fuse Block, 600 VAC, 15 A, 2 Poles

Manufacturer: Littelfuse

Manufacturer part number: 356002

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.18

Qty:

Product Details

Brand Name

Littelfuse®

Type

Cartridge

Description

Littelfuse® Fuse Block, Cartridge, 600 VAC, 15 A, 2 Pole, B-32THD Screw Terminal, Threaded Mount, 6.3 in Fuse Length, 32 mm Fuse Dia, For Use With: 3AG/3AB Series Fuse, Phenolic, Black, 1.69 in L x 2.38 in W x 0.73 in H

Standards

RoHS Compliant | UL Recognized | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

0.25 in board thickness
0.91 in each pole size
Black phenolic laminate base
Screw terminals mounting blocks
Nickel plated spring brass terminals

Specifications

Amperage Rating:	15 A
Color:	Black
Connection Type:	B-32THD Screw Terminal
Country of Origin:	CA
Dimensions:	1.69 in L x 2.38 in W x 0.73 in H
Fuse Diameter:	32 mm
Fuse Length:	6.3 in
Material:	Phenolic
Mounting Type:	Threaded
Number of Poles:	2
Suitable For Use With:	3AG/3AB Series Fuse
Voltage Rating:	600 VAC
