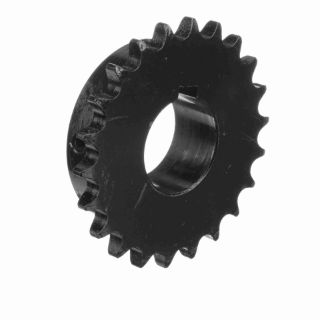

Actual Product May Vary From Image

3560X3/4 BRN

Name: 3560X3/4 BRN
Brand: Regal Rexnord
SKU: 3560X3/4 BRN
Availability: OutOfStock

Browning® 1130350 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 3/4 in Dia Bore, 7.38 in OD, #35 Chain, 60 Teeth, 3/8 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1130350

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Finished Bore Type 1

Description

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 3/4 in Bore Dia, 7.38 in Outside Dia, #35 Chain, 60 Teeth, 3/8 in Pitch, 7.165 in, 3.016 in Hub Dia, 3/16 x 3/32 in Keyway, 1 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
For use with 3/8 in pitch ANSI chain

Specifications

Bore Diameter:	3/4 in
Chain Size:	#35
Country of Origin:	US
Hub Diameter:	3.016 in
Keyway Size:	3/16 x 3/32 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	60
Outside Diameter:	7.38 in
Pitch:	3/8 in
Pitch Diameter:	7.165 in
