Actual Product May Vary From Image

35950 WOO

Name: 35950 WOO
Brand: Molex/Woodhead
SKU: 35950 WOO
Price: 231.65 USD
Availability: OutOfStock

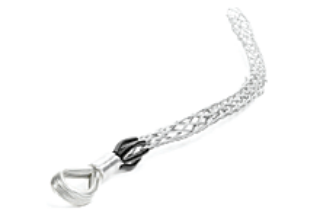

Woodhead® 35950 130095 Medium Duty Pulling Grip, 0.75 to 0.99 in Cable, 36 in L Mesh, 6800 lb Load

Manufacturer: Molex/Woodhead

Manufacturer part number: 35950

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$231.65

Qty:

Product Details

Brand Name

Woodhead®

Type

Medium Duty

Description

Standard closed-mesh and open-mesh support grips are available in a wide variety of eye styles and cable ranges. Support grips are woven from corrosion-resistant tinned- bronze wire, except for bus-drop grips, which are made from galvanized steel. Many of these grips can be upgraded to stainless-steel wire for applications demanding a higher level of corrosion resistance.

Woodhead® Pulling Grip, Medium Duty, Series: 130095, 0.75 to 0.99 in Cable, Closed Mesh, 36 in Mesh Length, Flexible Eye, 6800 lb Load

Application

Electrical Contractors, Facility Maintenance and Utility Companies

Standards

CSA LR32159

Features

Flexible eye works in both generous and tight spaces
Galvanized steel mesh offers superior strength
Shoulder protectors center the grip within a raceway and provide abrasion resistance
Wide application for medium to heavy-duty applications, higher incoming service lines
Broad grip strength available to match the needs of the required pull for short length T-type, standard length T-type and long length
Half single weave/half double weave mesh
Straight body

Specifications

Cable Size:	0.75 to 0.99 in
Country of Origin:	US
Eye Type:	Flexible
Load Capacity:	6800 lb
Mesh Length:	36 in
Mesh Type:	Closed
Series:	130095
