35BTB25 MSG

Name: 35BTB25 MSG
Brand: Martin Sprocket & Gear
SKU: 35BTB25 MSG
Price: 45.12 USD
Availability: OutOfStock

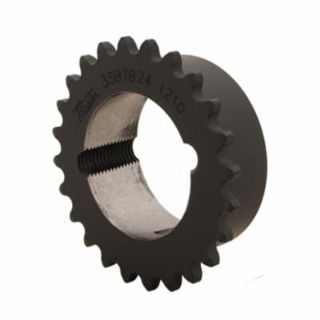

Martin 35BTB25 Taper Bushed Type B Single Pitch Roller Chain Sprocket, 3.193 in OD, #35 Chain, 25 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35BTB25

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$45.12

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 3.193 in Outside Dia, #35 Chain, 25 Teeth, 3/8 in Pitch, 2.992 in, 2.438 in Hub Dia, 1 in Length Through Bore, 1210 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	1210 Taper Lock
Chain Size:	#35
Country of Origin:	US
Hub Diameter:	2.438 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	25
Outside Diameter:	3.193 in
Pitch:	3/8 in
Pitch Diameter:	2.992 in
