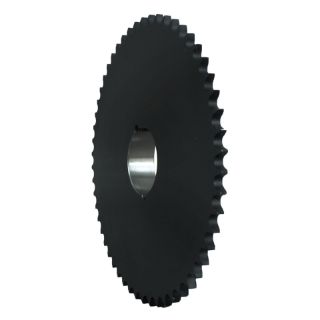

Actual Product May Vary From Image

35BTB60 MSG

Name: 35BTB60 MSG
Brand: Martin Sprocket & Gear
SKU: 35BTB60 MSG
Price: 80.71 USD
Availability: OutOfStock

Martin 35BTB60 Type B Single Strand Welded Bushed Roller Chain Sprocket, 1/2 to 1-5/8 in Dia Bore, 7.38 in OD, #35 Chain, 60 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35BTB60

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$80.71

Qty:

Product Details

Brand Name

Martin

Type

Type B Single Strand Welded Bushed

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head setscrews instead of bolts.

Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 1/2 to 1-5/8 in Bore, 7.38 in OD, #35 Chain, 60 Teeth, 3/8 in Pitch, 7.1652 in Pitch Diameter, 3-1/4 in Diameter Hub, 1 in Length Through Bore, TB 1610 Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's taper bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	1/2 to 1-5/8 in
Bushing Type:	TB 1610
Chain Size:	#35
Hub Diameter:	3-1/4 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	60
Outside Diameter:	7.38 in
Pitch:	3/8 in
Pitch Diameter:	7.1652 in
