35BTL36 UST

Taper-Lock® bushings are similar to QD® style bushings in that they both utilize a split through the taper and flange to provide a true clamp on the shaft that is equivalent to a shrink fit. This type of bushing is retained to the sprocket with a series of set screws on the outside diameter of the bushing running parallel to the shaft or can be welded to the sprocket itself. With Taper-Lock® bushings, there is no need for a set screw over the drive shaft key. Taper-Lock® bushings offer flexibility in that they allow multiple sized bores for a single bushing size.

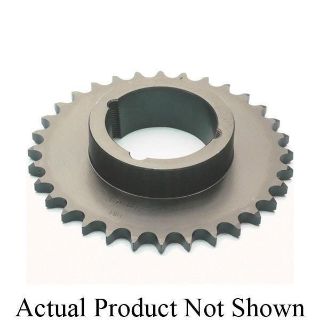

Tsubaki® Roller Chain Sprocket, 1-5/8 in Bore Dia, 4.511 in Outside Dia, #35 Chain, 36 Teeth, 3/8 in Pitch, 4.303 in, 3 in Hub Dia, 3/8 x 5/8 in Screw, 3/8 in W x 1/8 in H Keyway, 1 in Length Through Bore, Taper-Lock® 1610 Bushing, Carbon Steel
