Actual Product May Vary From Image

35H19 MSG

Name: 35H19 MSG
Brand: Martin Sprocket & Gear
SKU: 35H19 MSG
Price: 41.05 USD
Availability: OutOfStock

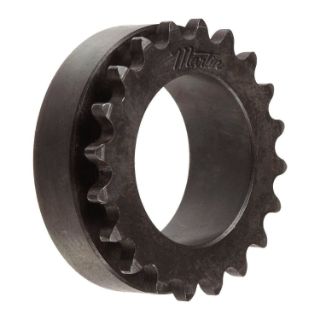

Martin 35H19 Type 3 Single Strand Solid Bushed Roller Chain Sprocket With Recess Groove, 3/8 to 1-1/2 in Dia Bore, 2.472 in OD, #35 Chain, 19 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35H19

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$41.05

Qty:

Product Details

Brand Name

Martin

Type

Type 3 Single Strand Solid Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 3 Single Strand Solid Bushed, 3/8 to 1-1/2 in Bore, 2.472 in OD, #35 Chain, 19 Teeth, 3/8 in Pitch, 2.2783 in Pitch Diameter, 2.510 in Diameter Hub, 7/8 in Length Through Bore, MST® H Bushing, Steel

Standards

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's split-taper bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bushing Type:	MST® H
Chain Size:	#35
Hub Diameter:	2.51 in
Length Through Bore:	7/8 in
Material:	Steel
Number of Teeth:	19
Outside Diameter:	2.472 in
Pitch:	3/8 in
Pitch Diameter:	2.2783 in
