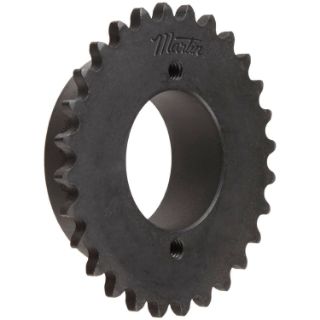

Actual Product May Vary From Image

35H70 MSG

Name: 35H70 MSG
Brand: Martin Sprocket & Gear
SKU: 35H70 MSG
Price: 129.30 USD
Availability: OutOfStock

Martin 35H70 Type 3 Single Strand Welded Bushed Roller Chain Sprocket, 3/8 to 1-1/2 in Dia Bore, 8.575 in OD, #35 Chain, 70 Teeth, 3/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 35H70

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$129.30

Qty:

Product Details

Brand Name

Martin

Type

Type 3 Single Strand Welded Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 3 Single Strand Welded Bushed, 3/8 to 1-1/2 in Bore, 8.575 in OD, #35 Chain, 70 Teeth, 3/8 in Pitch, 8.3584 in Pitch Diameter, 2-1/2 in Diameter Hub, 0.874 in Length Through Bore, MST® H Bushing, Steel

Standards

Features

Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out
Interchangeable with other manufacturer's split-taper bushings
Manufactured of high carbon steel

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bushing Type:	MST® H
Chain Size:	#35
Hub Diameter:	2-1/2 in
Length Through Bore:	0.874 in
Material:	Steel
Number of Teeth:	70
Outside Diameter:	8.575 in
Pitch:	3/8 in
Pitch Diameter:	8.3584 in
