Actual Product May Vary From Image

35JA19 BRN

Name: 35JA19 BRN
Brand: Regal Rexnord
SKU: 35JA19 BRN
Availability: OutOfStock

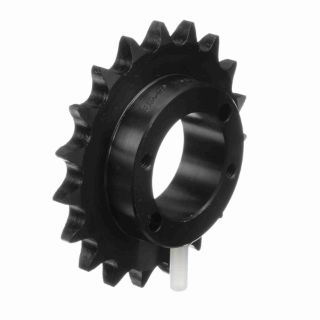

Browning® 3330008 Single Strand QD Bushed Type QD-1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 2.472 in OD, #35 Chain, 19 Teeth, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3330008

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand QD Bushed Type QD-1

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand QD Bushed Type QD-1, 1/2 in Bore Dia, 2.472 in Outside Dia, #35 Chain, 19 Teeth, 2.278 in, 2.015 in Hub Dia, 1.3365 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
Reverse mounting possible
For use with 3/8 in pitch ANSI chain

Specifications

Bore Diameter:	1/2 in
Chain Size:	#35
Country of Origin:	CN
Hub Diameter:	2.015 in
Length Through Bore:	1.3365 in
Material:	Steel
Number of Teeth:	19
Outside Diameter:	2.472 in
Pitch Diameter:	2.278 in
