Home / 35JA28 BRN

35JA28 BRN

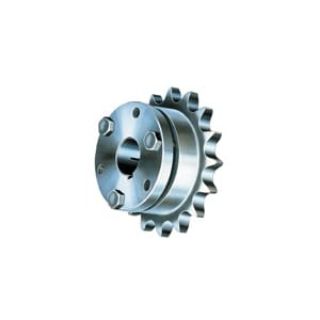

Picture of 35JA28 BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
3330099
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Browning®

Type

Single Strand QD Bushed Type QD-1

Description

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand QD Bushed Type QD-1, 1/2 in Bore Dia, 3.553 in Outside Dia, #35 Chain, 28 Teeth, 3.349 in, 2.015 in Hub Dia, 1.3365 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Features

  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
  • Reverse mounting possible
  • For use with 3/8 in pitch ANSI chain

Specifications

Bore Diameter:1/2 in
Chain Size:#35
Country of Origin:CN
Hub Diameter:2.015 in
Length Through Bore:1.3365 in
Material:Steel
Number of Teeth:28
Outside Diameter:3.553 in
Pitch Diameter:3.349 in
