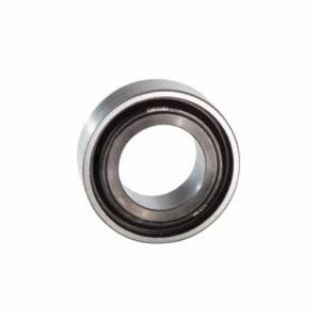

Actual Product May Vary From Image

35RBG3211E3 LBB

Name: 35RBG3211E3 LBB
Brand: Rexnord
SKU: 35RBG3211E3 LBB
Availability: OutOfStock

Link-Belt® 35RBG3211E3 200 Standard Duty Style-3 Unmounted Ball Bearing Unit, 2-3/16 in Dia Bore, 3.937 in OD, 1-5/16 in W, 9800 lb Dynamic/6570 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 35RBG3211E3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard Duty Style-3 Unmounted

Description

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Ball Bearing Unit, Standard Duty Style-3 Unmounted, Series: 200, 2-3/16 in Bore Dia, 3.937 in Outside Dia, 1-5/16 in Width, 9800 lb Dynamic/6570 lb Static Load, 500 rpm Maximum, 225 deg F

Application

Aggregates, Agriculture, Air Handling, Package Handling, Construction and Shipping Industries

Standards

ANSI | ABMA STD 9

Features

Compact 1-piece housing provides excellent mounting support
Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
Round bore bearing
Cylindrical outside diameter of outer ring
Relubricatable bearing and two holes in outer ring at 180 deg
Non-metallic retainer
Basic inch width outer ring and inner ring
Triple lip contact seal
211 size code

Specifications

Bore Diameter:	2-3/16 in
Load Capacity:	9800 lb Dynamic/6570 lb Static
Maximum Speed:	500 rpm
Outside Diameter:	3.937 in
Series:	200
Temperature Rating:	225 deg F
Width:	1-5/16 in
