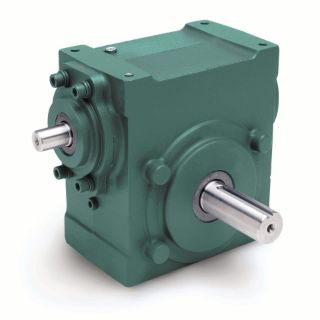

Actual Product May Vary From Image

35S10R DOD

Name: 35S10R DOD
Brand: Dodge
SKU: 35S10R DOD
Price: 2,094.69 USD
Availability: OutOfStock

35S10R TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 35S10R

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,094.69

Qty:

Product Details

Base to Output Center Height:	3.9900
Base to Output Center Height (Unit):	INCH
Case Size:	35
Center Distance:	3.5000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	7.0600
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	10.0000
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	9.1900
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	7.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	10.0000
Output Shaft:	Right (Solid B)
Output Style:	Right
Overhung Load:	2700
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	3310
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.8750
Shaft Diameter Input (Unit):	INCH
Shaft Diameter Output:	1.5000
Shaft Diameter Output (Unit):	INCH
Shaft Length Input:	1.7500
Shaft Length Input (Unit):	INCH
Shaft Length Output:	3.5100
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	10.6300
Thermal Horsepower Rating (Unit):	HORSEPOWER
