35S50H DOD

Name: 35S50H DOD
Brand: Dodge
SKU: 35S50H DOD
Price: 2,771.58 USD
Availability: OutOfStock

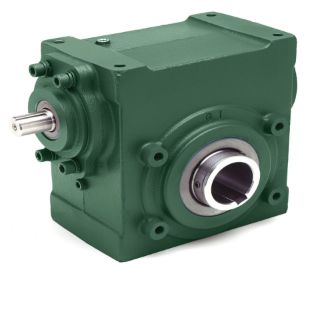

35S50H TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 35S50H

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$2,771.58

Qty:

Product Details

Base to Output Center Height:	3.9900
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.9380
Bore Diameter (Output) (Unit):	INCH
Bore Length:	8.7400
Bore Length (Unit):	INCH
Case Size:	35
Center Distance:	3.5000
Center Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	2.6400
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	1.9400
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Separate
Lubrication:	PAG, Standard Temperature
Mounting Bolt Pattern Length:	7.5000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	50.0000
Output Shaft:	Hollow
Output Style:	Hollow
Overhung Load:	2760
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	3485
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Input:	0.8750
Shaft Diameter Input (Unit):	INCH
Shaft Length Input:	1.7500
Shaft Length Input (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	2.9400
Thermal Horsepower Rating (Unit):	HORSEPOWER
