3/5V3550 GAT

Name: 3/5V3550 GAT
Brand: Gates Corporation
SKU: 3/5V3550 GAT
Price: 1,564.64 USD
Availability: InStock

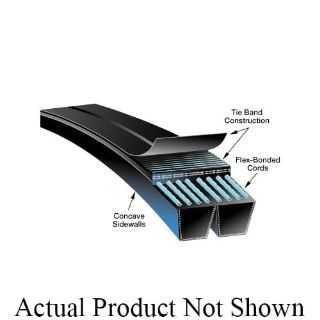

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

3/5V3550

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,564.64 / EA

Description

Brand Name

Gates®

Type

Banded Heavy Duty

Description

The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Super HC® PowerBand® V-Belt, Banded Heavy Duty, Series: 9386, 5V Section, 5/8 in Top Width, 355 in Outside Length, 35/64 in Thickness, 3 Ribs, 7.958 in Diameter Minimum Pulley, -30 to 180 deg F, Chloroprene, Flex-Bonded Polyester Reinforced

Application

For multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear

Specifications

Country of Origin:	MX
Material:	Chloroprene
Minimum Pulley Diameter:	7.958 in
Number of Ribs:	3
Outside Length:	355 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	5V
Series:	9386
Temperature Range:	-30 to 180 deg F
Thickness:	35/64 in
Top Width:	5/8 in
