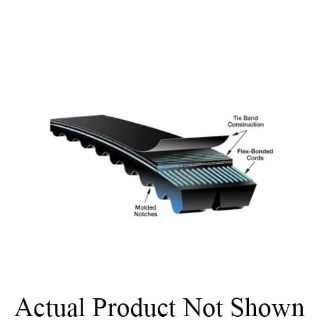

Actual Product May Vary From Image

3/5VX1120 GAT

Name: 3/5VX1120 GAT
Brand: Gates Rubber
SKU: 3/5VX1120 GAT
Price: 440.62 USD
Availability: OutOfStock

Gates® Super HC® Molded Notch PowerBand® 3/5VX1120 Heavy Duty Molded Notch V-Belt, 5VX Section, 5/8 in W Top, 112 in L Outside, 35/64 in THK, EPDM

Manufacturer: Gates Rubber

Manufacturer part number: 3/5VX1120

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$440.62

Qty:

Product Details

Brand Name

Gates®

Type

Heavy Duty Molded Notch

Description

The PowerBand® construction allows multiple belts to function as a single unit, with even load distribution and each strand fitting securely in the sheave groove.

Gates® Super HC® Molded Notch PowerBand® V-Belt, Heavy Duty Molded Notch, Series: 9389, 5VX Section, 5/8 in Top Width, 112 in Outside Length, 35/64 in Thickness, 3 Ribs, 7.958 in Diameter Minimum Pulley, -60 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Application

For multiple V-belt drives exposed to pulsating or heavy shock loads which can make belts whip, turn over or jump off the drive

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Notches molded into the belt during manufacturing increase flexibility making this belt well suited for drives with smaller diameter sheaves
The tie band assures high lateral rigidity, guiding the belt in a straight line and preventing it from coming off the drive
Patented ethylene material construction provides -60 to 250 deg F temperature range to resist belt cracking

Specifications

Country of Origin:	US
Material:	EPDM
Minimum Pulley Diameter:	7.958 in
Number of Ribs:	3
Outside Length:	112 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	5VX
Series:	9389
Temperature Range:	-60 to 250 deg F
Thickness:	35/64 in
Top Width:	5/8 in

Customers who bought this item also bought

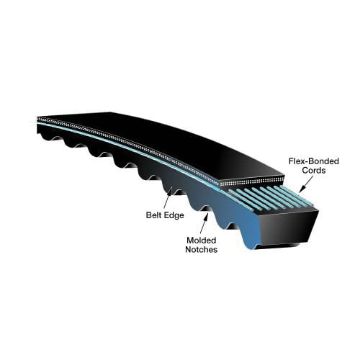

CX100 GAT
