Actual Product May Vary From Image

36-GC6313-01 REX

Name: 36-GC6313-01 REX
Brand: Rexnord
SKU: 36-GC6313-01 REX
Availability: OutOfStock

Rex® 36-GC6313-01 G Series Medium Duty Positive Arm Troughing Idler, C CEMA Rating, 6 in Dia Roll, 35 deg Trough Angle, 36 in W Belt, Steel

Manufacturer: Rexnord

Manufacturer part number: 36-GC6313-01

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rex®

Type

Medium Duty Positive Arm

Description

Rex® belt conveyor idlers and components have an extensive history of durability and high performance in the most abrasive material handling applications. From impact to return idlers and everything in between, Rexnord® has you covered no matter where or what your belt conveyor is moving.

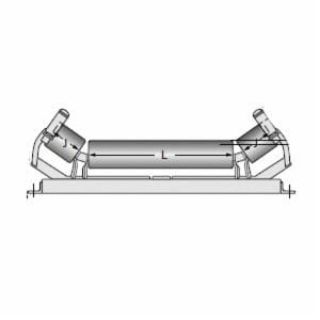

Rex® Troughing Idler, Medium Duty Positive Arm, Series: G Series, C CEMA, 6 in Roll Dia, 35 deg Trough angle, 36 in Belt Width, Tapered Roller Bearing, 21 in Roller Length, 45 in Distance Between Mounting Holes, 37-1/4 in Distance Between Roller Ends, Steel

Application

Asphalt, Cement and Aggregate, Fertilizer, Forestry, Mining and Solid Waste

Standards

ANSI B20.1 | OSHA Approved

Features

Equal length roll
Longer idler life
Withstands rough handling
Inverted angle base prevents buildup of spillage eliminates possible jamming of idler rolls
Durable, high-quality seal provides maintenance-free life
Wide center brackets for heavier loads
Handles surge loading
Rugged ball bearings provide ample load carrying capacity
Regreasable lubrication
Belt travel one direction only

Specifications

Bearing Type:	Tapered Roller
Belt Width:	36 in
CEMA Rating:	C
Distance Between Mounting Holes:	45 in
Distance Between Roller Ends:	37-1/4 in
Material:	Steel
Roll Diameter:	6 in
Roller Length:	21 in
Series:	G Series
Trough Angle:	35 deg
