360C6W LEV

Name: 360C6W LEV
Brand: Leviton Manufacturing
SKU: 360C6W LEV
Availability: OutOfStock

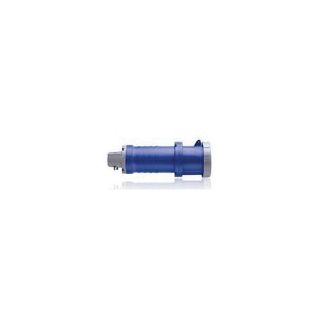

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

360C6W

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

North American Configuration Watertight

Alternate Supplier #

Grainger - 25NC70

Description

Leviton® pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device, devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve ON the female device and the number of conductors. This location is based on a clock face with the key way at the 6 oclock position. The ground sleeve is positioned at a specific hour location, depending ON the devices voltage rating.

Leviton®, 360C6W, Pin and Sleeve Connector, North American Configuration Watertight, Series: Series II, 250 VAC, 60 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 4.41 in Dia x 11.26 in L Dimensions

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1 | IEC 60309-1/60309-2 | UL 1682/1686 | UL 94 V-2 Flammability Rated

Features

Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
Rear terminals, raised lettering identification
Calibrated, self-adjusting contacts
Front terminals, raised lettering identification
Rugged housing, made of superior performance valox™357, provides maximum corrosion protection and makes the device resistant to impact and abuse, greater resistance to temperature extremes, V-0 flame rated and superior UV stability
Contact carrier resists arcing and internal heat build-up, 60 and 100 A contact/pin carriers are made of reinforced nylon for even greater strength and temperature resistance
Solid brass terminal screws on 20 A, 30 A and 60 A devices provide maximum clamping pressure
Stainless steel terminal screws and terminals on 100 A devices provide corrosion resistance in caustic environments
Multiple contact points assure a continuously reliable electrical connection

Specifications

Amperage Rating:	60 A
Color:	Blue
Country of Origin:	CZ
Dimensions:	4.41 in Dia x 11.26 in L
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	2
Number of Wires:	3
Series:	Series II
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
