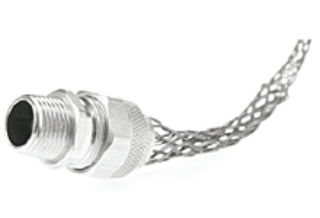

Actual Product May Vary From Image

36272 WOO

Name: 36272 WOO
Brand: Molex/Woodhead
SKU: 36272 WOO
Price: 163.57 USD
Availability: OutOfStock

Woodhead® 36272 130097 Strain Relief Deluxe Cord Grip, 1-1/4 in Trade, Aluminum

Manufacturer: Molex/Woodhead

Manufacturer part number: 36272

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$163.57

Qty:

Product Details

Brand Name

Woodhead®

Type

Strain Relief

Description

Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help to prevent pullout. Woodhead offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire mesh assemblies offer the greatest impact and chemical resistance to be applied in food processing, dairy, aerospace and clean room environments.

Woodhead® Deluxe Cord Grip, Strain Relief, Series: 130097, 1-1/4 in Trade, MNPT Straight Connection, 9 in Mesh Length, Aluminum

Application

Electricians, HVAC Contractors, Irrigation Equipment and Panel Builders Applications

Standards

CSA LR32159 | UL E76954

Features

Aluminum/stainless steel material construction performs well to resist corrosion
50% double weave construction improves cable protection and pull-out resistance
Robust design good for indoor and outdoor use
Stainless steel grip and mesh, aluminum threaded body, compression nut and mesh collar, rubber grommet, zinc-plated steel friction ring
NEMA 4 enclosures with gasket placed between fitting and box
Half double and half single weave mesh
F5 form size
For use with 130099-0146 1-1/4 in NPT locknut
1 to 1-1/8 in cable diameter

Specifications

Connection Type:	MNPT Straight
Country of Origin:	US
Material:	Aluminum
Mesh Length:	9 in
Series:	130097
Trade Size:	1-1/4 in
