364643TA-H DIC

Name: 364643TA-H DIC
Brand: Dichtomatik
SKU: 364643TA-H DIC
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dichtomatik

Manufacturer part number:

364643TA-H

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

TCM®

Type

Type TA-H Dual-Lip

Description

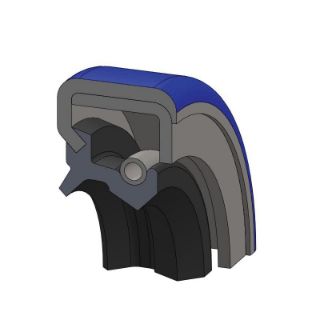

TCM® Shaft Seal, Type TA-H Dual-Lip, 3-5/8 in Inside Dia, 4-5/8 in Outside Dia, 0.437 in Width, -40 to 225 deg F, 0 to 7 psi, Carbon Steel

Application

Mechanical Power Transmission, Food and Beverage, Chemical, Pharmaceutical, Energy and Power Generation, Fluid Handling, Lawn and Garden, Material Handling, Recreational Vehicles, Trailer and Manufacturing Industries

Standards

ASTM D2000 M2BG714 A14 B14 EO14 EO34 EF11 EF21 EA14 F17 | DNV | ISD Certified | NFPA Listed | PTDA

Features

Dual lip with a garter spring - generally used for sealing lower pressure applications
The additional dust lip provides increased protection for the primary lip
The cavity between the two lips can also be filled with grease to limit shaft corrosion and allow brief operation without media lubrication
Outer metal case with reinforcing plate - this type is designed with an additional inner case providing increased structural rigidity when a more robust design is required
Particularly suitable for larger diameters or when the seal is fitted from behind
OD sealant - the sealant is a synthetic rubber that is sprayed onto the OD of the metal case
When the seal is installed into the housing the sealant fills in any scratches or flaws that may exist in the housing to provide a good sealing surface
Nitrile double lip spring double case bore coat

Specifications

Inside Diameter:	3-5/8 in
Material:	Carbon Steel
Outside Diameter:	4-5/8 in
Pressure Rating:	0 to 7 psi
Temperature Rating:	-40 to 225 deg F
Width:	0.437 in
