36L100SDS BRN

Name: 36L100SDS BRN
Brand: Regal Rexnord
SKU: 36L100SDS BRN
Availability: OutOfStock

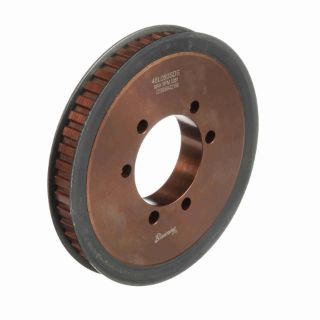

Browning® Gearbelt® 3513421 Solid Type BF Synchronous Timing Pulley With Flange, 1/2 to 2 in QD® Bore, 4.267 in OD, 36 Grooves, 4.297 in Dia Pitch, 1-1/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3513421

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Solid Type BF

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Solid Type BF, QD® Bore, 1/2 to 2 in Bore Dia, 4.267 in Outside Dia, 4.297 in, 36 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, 4-17/32 in Flange Dia, SDS Bushing, 1.48125 in Overall Length, For Use With: 1 in W Type L100 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1/2 to 2 in
Bore Type:	QD®
Bushing Type:	SDS
Country of Origin:	US
Face Width:	1-1/4 in
Flange Diameter:	4-17/32 in
Number of Grooves:	36
Outside Diameter:	4.267 in
Overall Length:	1.48125 in
Pitch:	3/8 in
Pitch Diameter:	4.297 in
Suitable For Use With:	1 in W Type L100 Belt
