Actual Product May Vary From Image

36XLB037S BRN

Name: 36XLB037S BRN
Brand: Regal Rexnord
SKU: 36XLB037S BRN
Availability: OutOfStock

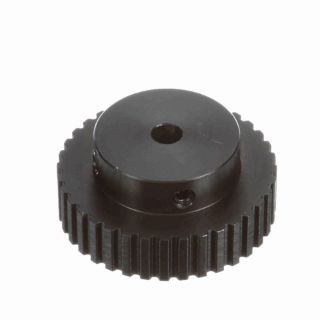

Browning® Gearbelt® 1430842 Type 2A Synchronous Timing Pulley Without Flange, 5/16 to 1 in Bore, 2.272 in OD, 36 Grooves, 2.292 in Dia Pitch, 9/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1430842

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 2A

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type 2A, 5/16 to 1 in Bore Dia, 2.272 in Outside Dia, 2.292 in Pitch Diameter, 36 Grooves, 1/5 in Pitch, 9/16 in Face Width, 1-1/2 in Hub Dia, 7/16 in Hub Projection, MPB Bushing, 1 in OAL, For Use With: 3/8 in W XL Type Belt, Steel

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	5/16 to 1 in
Bushing Type:	MPB
Country of Origin:	US
Face Width:	9/16 in
Hub Diameter:	1-1/2 in
Hub Projection:	7/16 in
Material:	Steel
Number of Grooves:	36
Outside Diameter:	2.272 in
Overall Length:	1 in
Pitch:	1/5 in
Pitch Diameter:	2.292 in
Suitable For Use With:	3/8 in W XL Type Belt
