3702-2 RAC

Picture of 3702-2 RAC
Actual Product May Vary From Image

Product Details

Manufacturer:
Raco Industries
Manufacturer part number:
3702-2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$17.08 / EA

Description

Brand Name

RACO®

Type

Form 1 Strain Relief Straight

Alternate Supplier #

Grainger - 2A247

Description

RACO® is one of the oldest brands in the electrical industry and its name is synonymous with quality and innovation. RACO® continues to be a leading manufacturer of steel electrical boxes, covers and fittings. It's product portfolio also includes a complete line of nonmetallic boxes and covers, floor boxes and switches. RACO® is dedicated to providing innovative, cost effective product solutions to the commercial and residential markets.

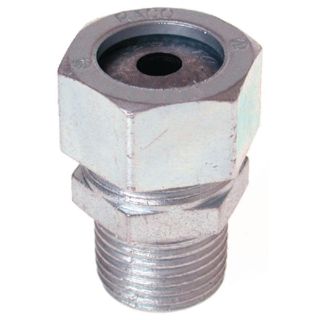

RACO®, 3702-2, Cord Connector, Form 1 Strain Relief Straight, 1/2 in Trade, Cable Openings: 1/4 to 3/8 in, NPT Connection, Straight Angle, Steel, Electro-Plated Zinc, Silver, 1-29/64 in L x 1-1/16 in W Dimensions

Application

Used in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable, electrical applications

Standards

cULus Listed | Class III Divisions 1 and 2

Features

  • All steel/malleable construction provides mechanical strength
  • 1/2-14 NPT
  • Electroplated zinc, unique neoprene grommet design, imprinted size range on washers, wet or dry locations
  • 3/8 to 1 in steel, 1-1/4 to 1-1/2 in malleable iron bodies and nuts
  • Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
  • 1/2 in L thread

Specifications

Angle:Straight
Cable Openings:1/4 to 3/8 in
Color:Silver
Connection Type:NPT
Country of Origin:CN
Dimensions:1-29/64 in L x 1-1/16 in W
Finish:Electro-Plated Zinc
Material:Steel
Trade Size:1/2 in
