Home / 3703-5 RAC

3703-5 RAC

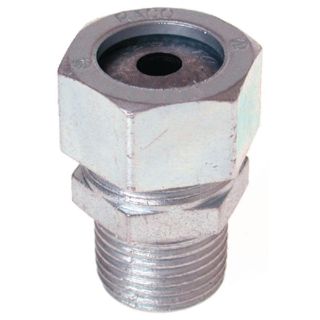

Picture of 3703-5 RAC
Actual Product May Vary From Image

Product Details

Manufacturer:
Raco Industries
Manufacturer part number:
3703-5
CBT Inventory
12
Vendor Inventory
Loading...
CBT - Cincinnati
12
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
$18.95 / EA

Description

Brand Name

RACO®

Type

Form 3 Strain Relief Straight

Description

RACO® is one of the oldest brands in the electrical industry and its name is synonymous with quality and innovation. RACO® continues to be a leading manufacturer of steel electrical boxes, covers and fittings. It's product portfolio also includes a complete line of nonmetallic boxes and covers, floor boxes and switches. RACO® is dedicated to providing innovative, cost effective product solutions to the commercial and residential markets.
RACO® Cord Connector, Form 3 Strain Relief Straight, 3/4 in, Cable Openings: 0.7 to 0.85 in, NPT, Steel, Electro-Plated Zinc, Silver, 1-31/64 in L x 1-13/32 in W

Application

Used in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable, electrical applications

Features

  • All steel/malleable construction provides mechanical strength
  • Unique neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal
  • Washers have cable size range imprinted for identification - eliminates misidentifying inventory
  • Use RACO® locknuts and sealing washers to complete a liquid tight installation on a sheet metal box or panel
  • All metallic components are zinc electro plated for added corrosion protection
  • UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation
  • RACO® liquidtight strain relief cord connectors are suitable for use in class I, division 2, class II, division 1, 2 and class III, division 1, 2 hazardous locations
  • Steel nuts
  • 9/16 in L thread
  • 3/4 in-14 NPT

Specifications

Cable Openings:0.7 to 0.85 in
Color:Silver
Connection Type:NPT
Country of Origin:CN
Dimensions:1-31/64 in L x 1-13/32 in W
Finish:Electro-Plated Zinc
Material:Steel
Trade Size:3/4 in
