Home / 3721 LEV

3721 LEV

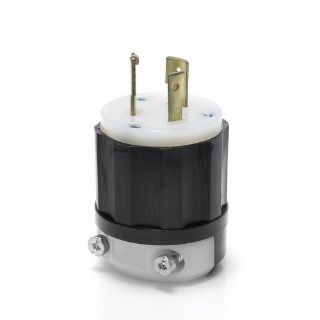

Picture of 3721 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
3721
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$41.27 / EA

Description

Brand Name

Leviton®

Type

1-Phase Cable Mount Grounding

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Black & White® Locking Plug, 1-Phase Cable Mount Grounding, 347 VAC, 20 A, 2 Poles, 3 Wires, NEMA L24-20P, Industrial Grade, 0.385 to 0.78 in Cord Dia, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.08 Dia x 2.47 in L

Application

Industrial Applications

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Features

Certified for current interrupting at full rated current

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.385 to 0.78 in
Country of Origin:MX
Dimensions:2.08 Dia x 2.47 in L
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA L24-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:347 VAC
