375Q140L40 MOR

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

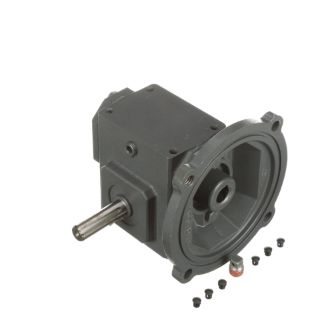

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 40:1 Gear Ratio, 1 hp, C-Face Quilled Input, Left Output, 7/8 in Dia Input, 1-5/8 in Dia x 3.5 in L Output, 43.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 104.8 in-lb Input/43.7 in-lb Output, 3-3/4 in Centre Distance, 3/16 x 3/32 in Input Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 11.74 in L x 11.88 in W x 10.44 in H
